Overview
- DC MotorMotor type
- 6 speedsFan speed levels
- Reversible airflowSummer & winter comfort
- App controlControl from a compatible device
- Dimmable lightAdjustable brightness
- 3000K / 4000K / 6000KColor temperature
Smart Comfort and Adjustable Lighting

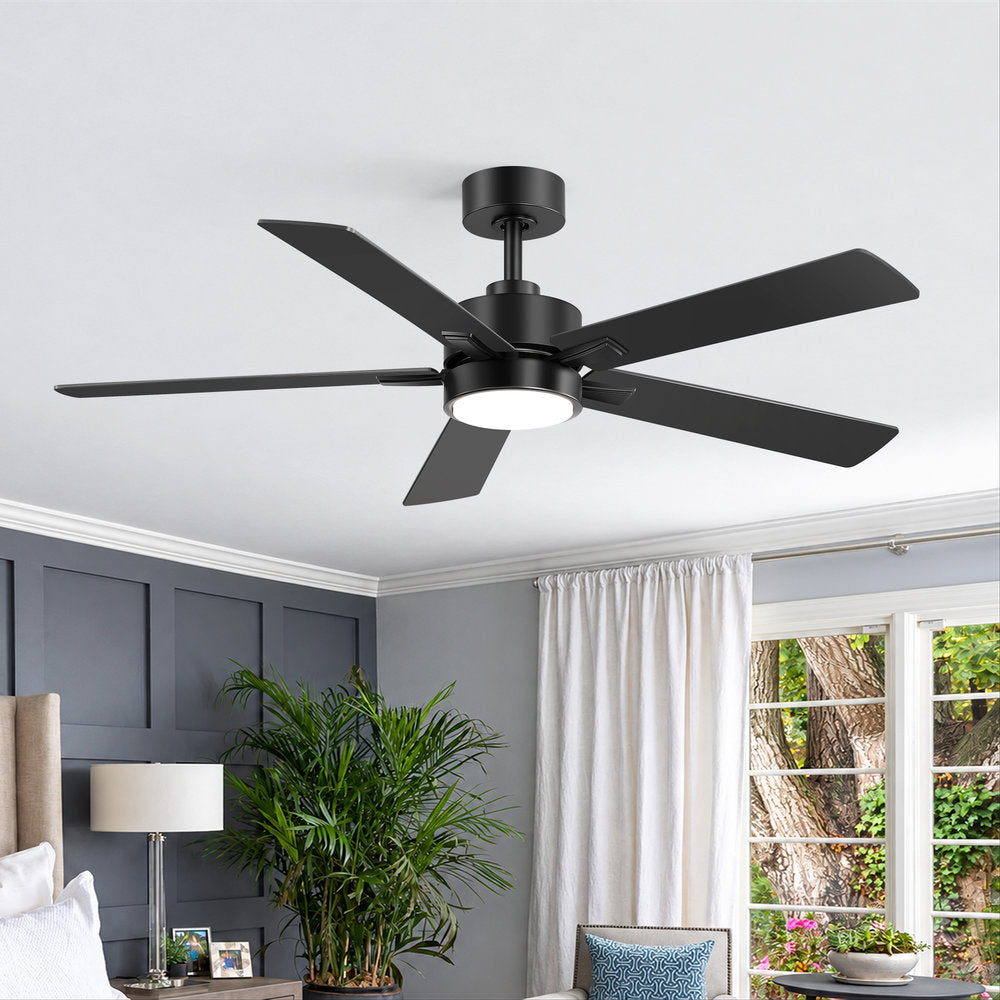

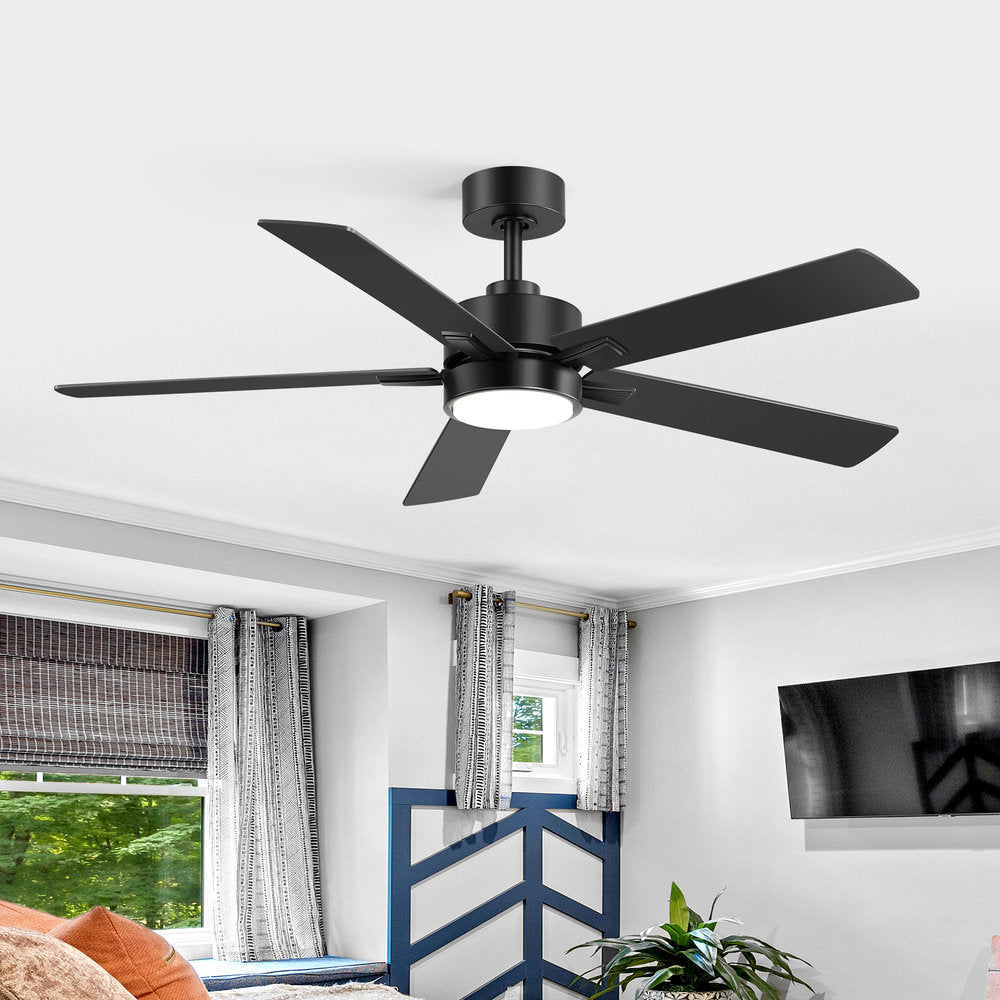

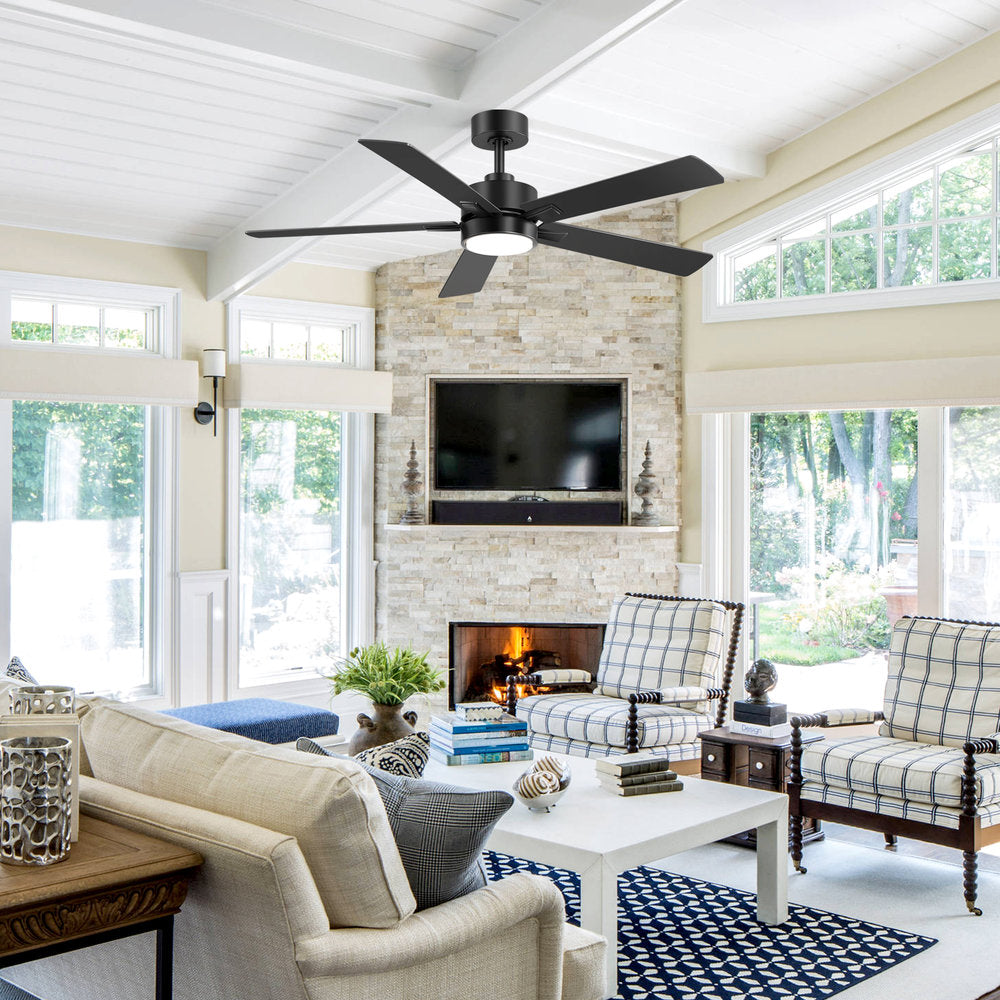

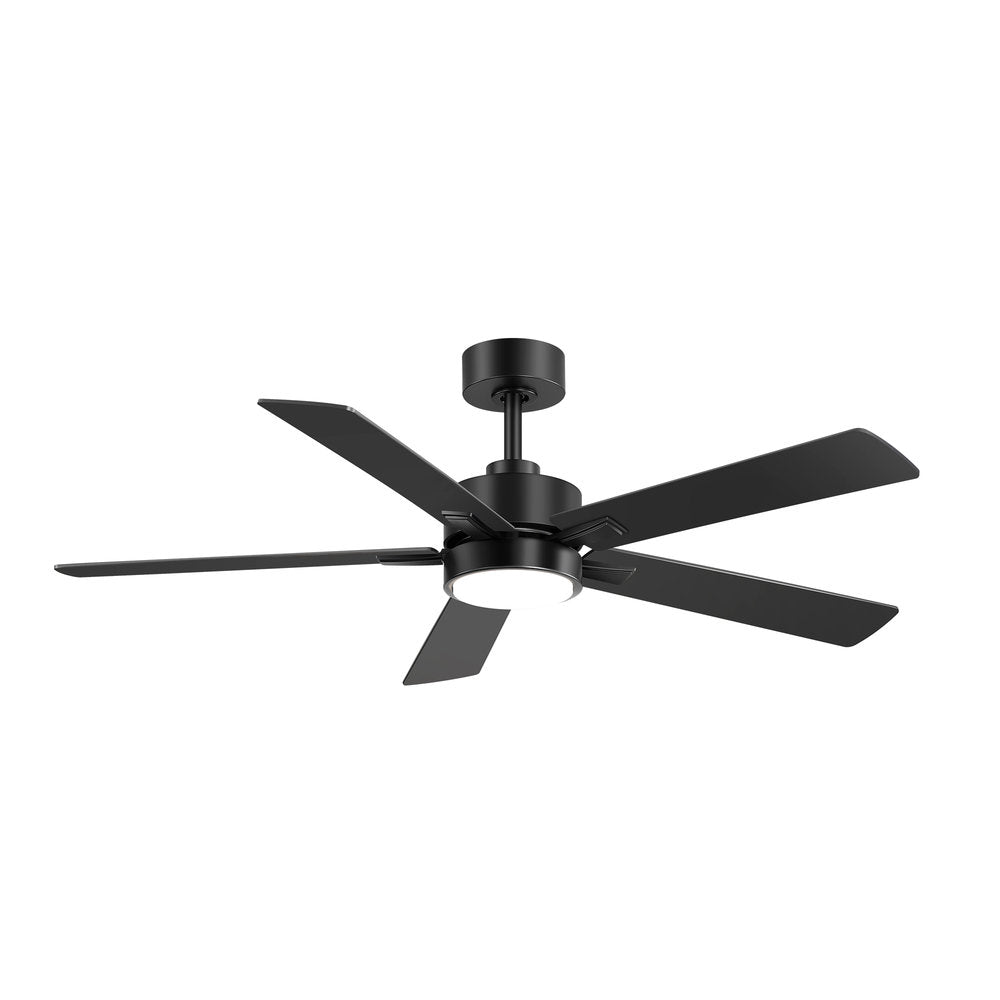

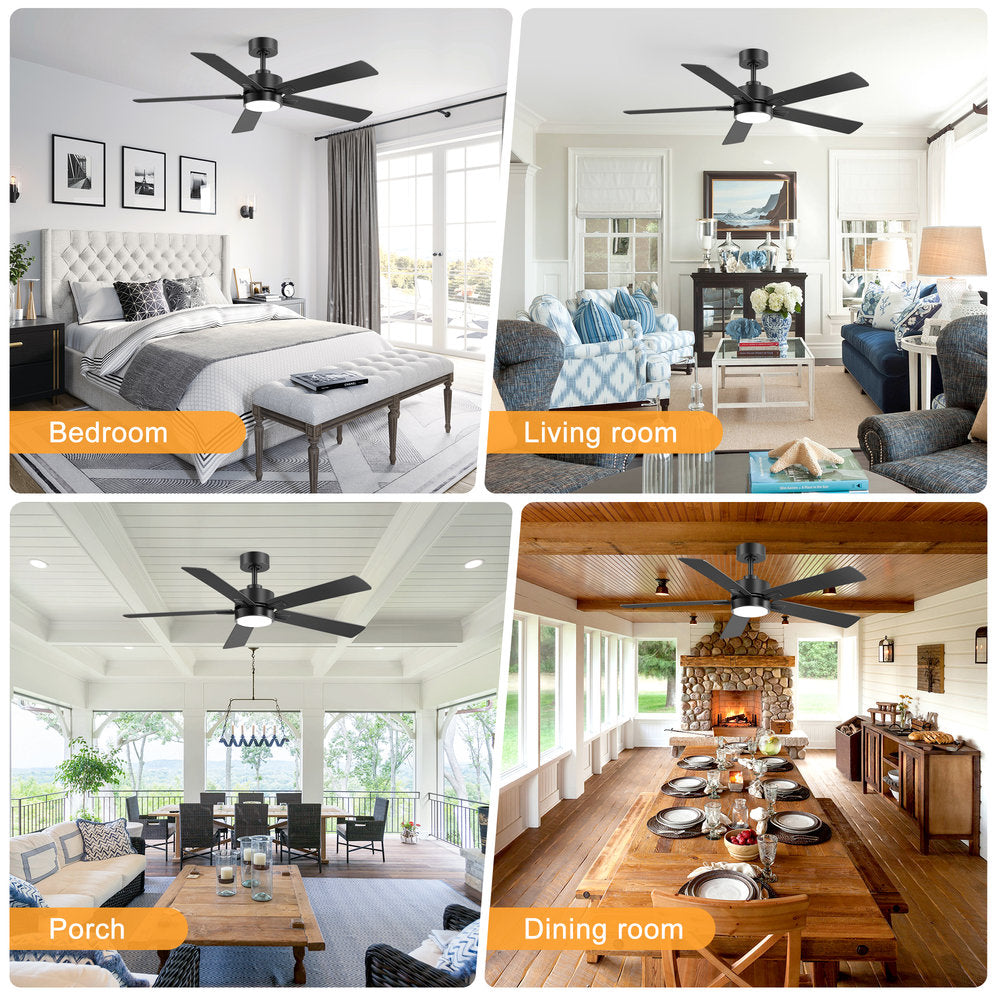

Bring convenient control to your everyday space with this 52-inch smart ceiling fan. Five plywood blades, a reversible DC motor, and an integrated dimmable LED light combine air circulation and lighting in a streamlined design for bedrooms, living rooms, and kitchens.
Three Ways to Control
Adjust your fan using the remote, the Tuya app, or compatible voice assistants. Alexa and Google Assistant compatibility lets you control supported functions with voice commands after setup.

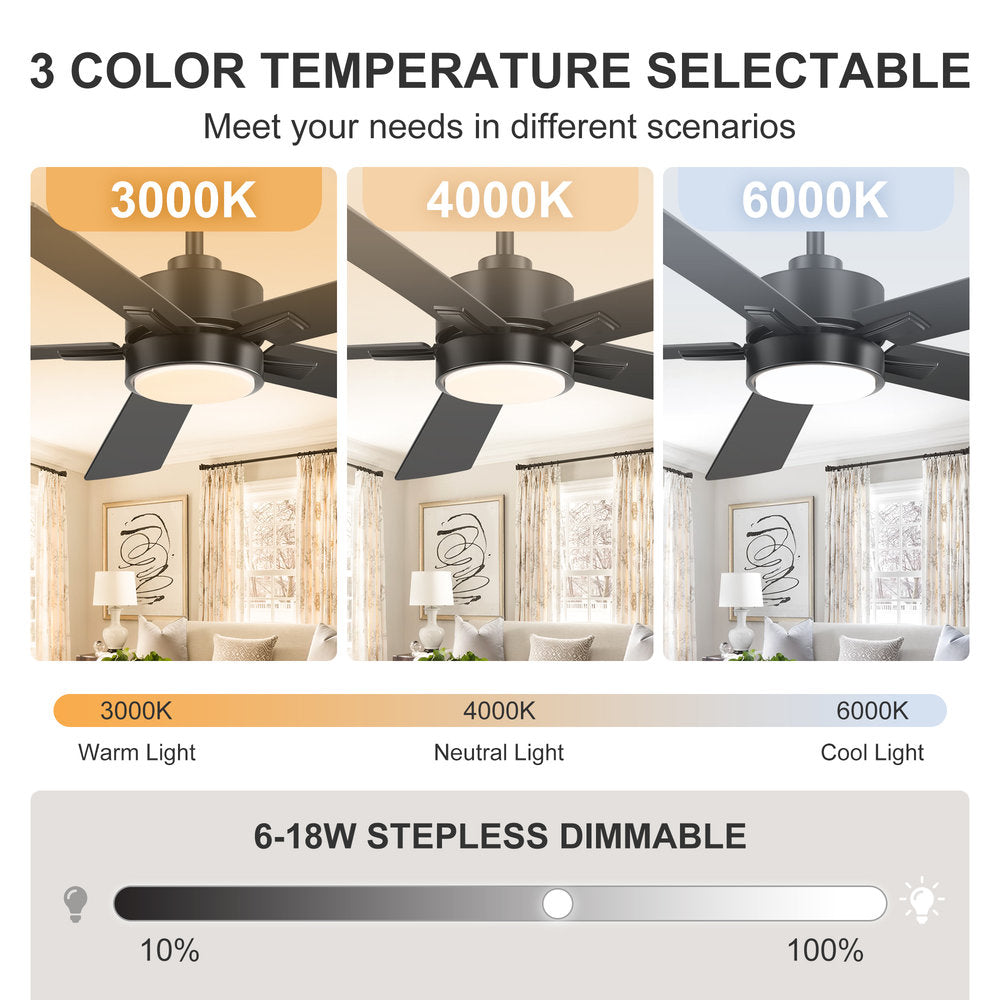

Dimmable LED Light with Three Color Settings
The integrated 18W LED light delivers up to 1,958 lumens through an acrylic shade. Adjust brightness from 10% to 100%, and choose warm, neutral, or cool lighting to suit relaxing, working, or entertaining.
6 Adjustable Fan Speeds
Choose from six speed settings to suit your comfort, from gentle circulation to a stronger cooling breeze. Convenient app and remote controls make it easy to adjust the airflow.

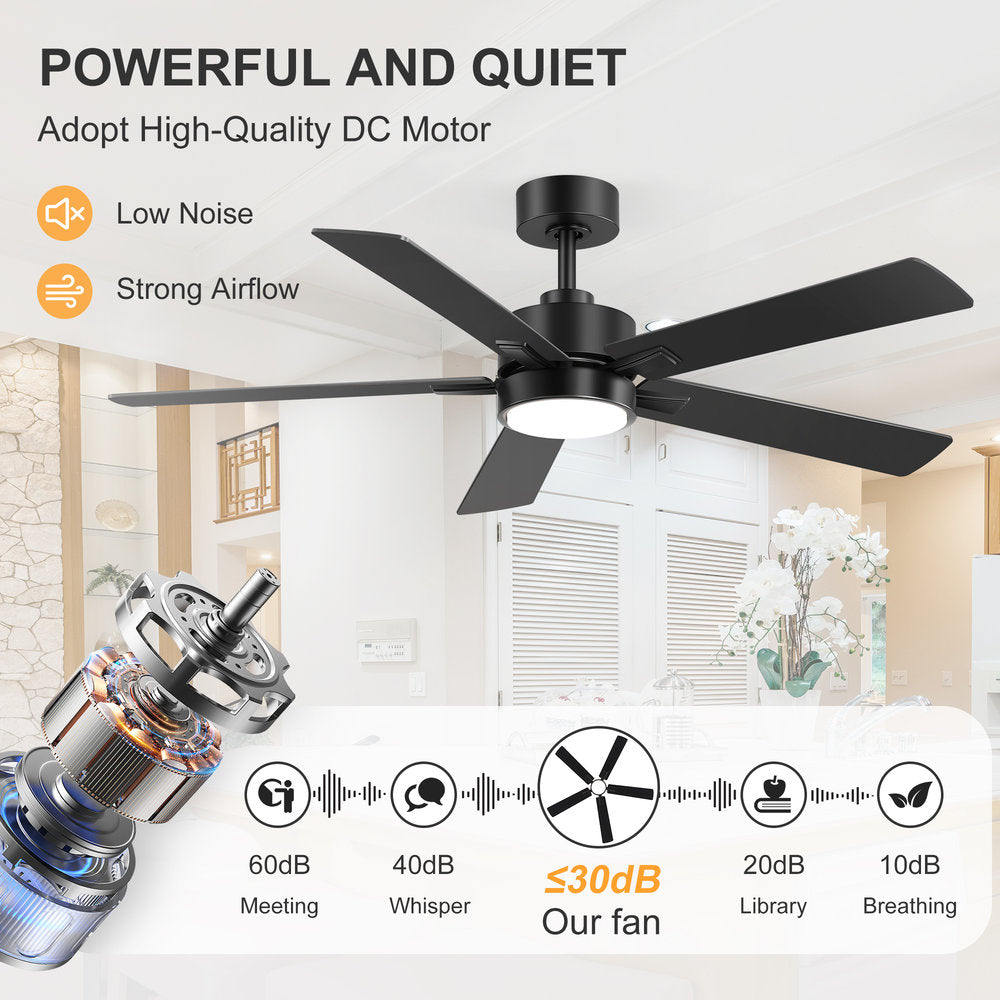

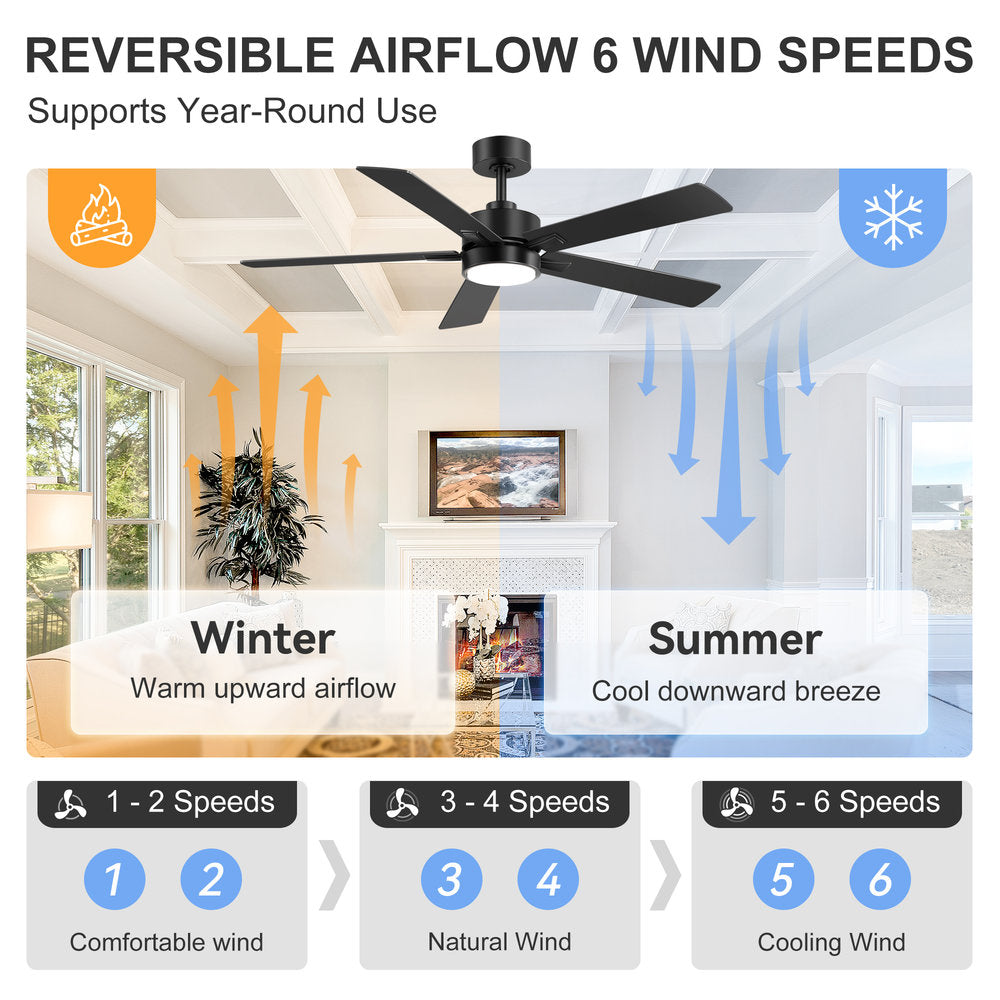

Reversible DC Motor
The 30W DC motor supports forward and reverse rotation for seasonal air circulation. Use downward airflow for a cooling breeze in summer and reverse rotation to help circulate warm air during cooler months.

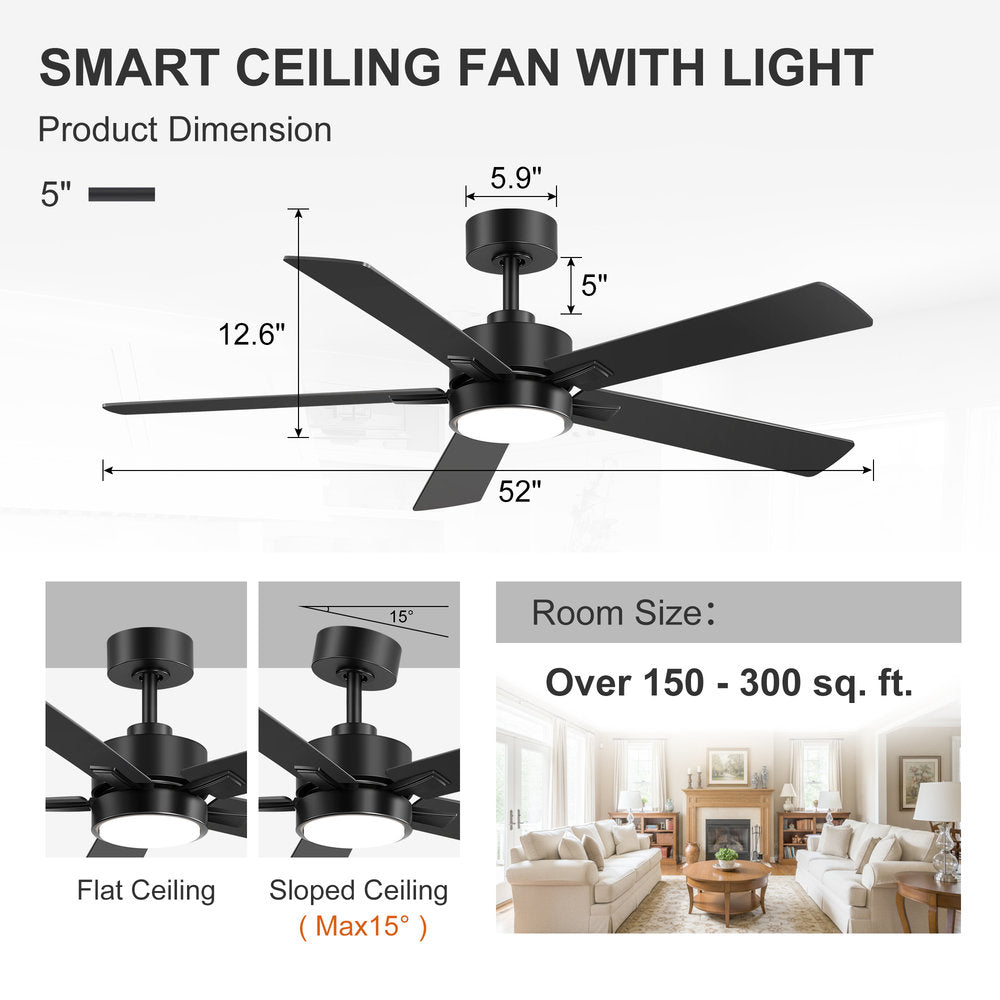

Fits Flat and Sloped Ceilings
The fan features a 5-inch downrod and an overall height of 12.6 inches. It supports flat ceilings and sloped ceilings up to 15°. The supplied product guide recommends a room area of approximately 150–300 square feet.
Specifications
-
Fan diameter: 52 in
-
Overall height: 12.6 in
-
Blade count: 5
-
Blade material: Plywood
-
Individual blade dimensions: 21.7 × 5.2 in
-
Motor type: DC
-
Motor power: 30W
-
Power supply: 120V / 60Hz
-
Maximum motor speed: 170 RPM
-
Fan speeds: 6
-
Reversible airflow: Yes
-
Control methods: Tuya app / Remote / Compatible voice assistants
-
Voice assistant compatibility: Alexa / Google Assistant
-
Light source: Integrated LED
-
Maximum LED power: 18W
-
Light output: Up to 1,958 lumens
-
Brightness adjustment: 10%–100%
-
Color temperature settings: Warm / Neutral / Cool
-
Shade material: Acrylic
-
Light memory: No
-
Mounting type: Downrod
-
Downrod length: 5 in
-
Canopy diameter: 5.9 in
-
Maximum ceiling slope: 15°
-
Recommended room area: 150–300 sq. ft.
-
Net product weight: 10.6 lb (4.8 kg)
Specifications
Dimensions & Design
- Model Number
- 24024-S-AB
- Fan Diameter
- 52 in
- Blade Count
- 5
- Blade Size
- 21.7*5.2 in
- Product Weight
- 10.6 lb
Motor & Controls
- Motor Type
- DC Motor
- Fan Speeds
- 6
- Motor Input Power
- 30W
- Voltage / Frequency
- 120V/60HZ
- Reversible Airflow
- Yes
- App Control
- Yes
Lighting
- Light Type
- LED
- LED Wattage
- 18W
- Light Output
- 1,958 lm
- Shade Material
- Acrylic
- Dimmable
- Yes
- Color Temperature
- 3000K / 4000K / 6000K
- Light Memory
- No
Installation & Location
- Fan Mounting Type
- Downrod
- Downrod Length
- 5 in
- Flush / Low Profile
- No
- Sloped Ceiling Compatible
- Yes
- Maximum Ceiling Slope
- 15°
- Installation Location
- Indoor
- Damp Rated
- No
Warranty
- Warranty Length
- 1 Year
